Product Details

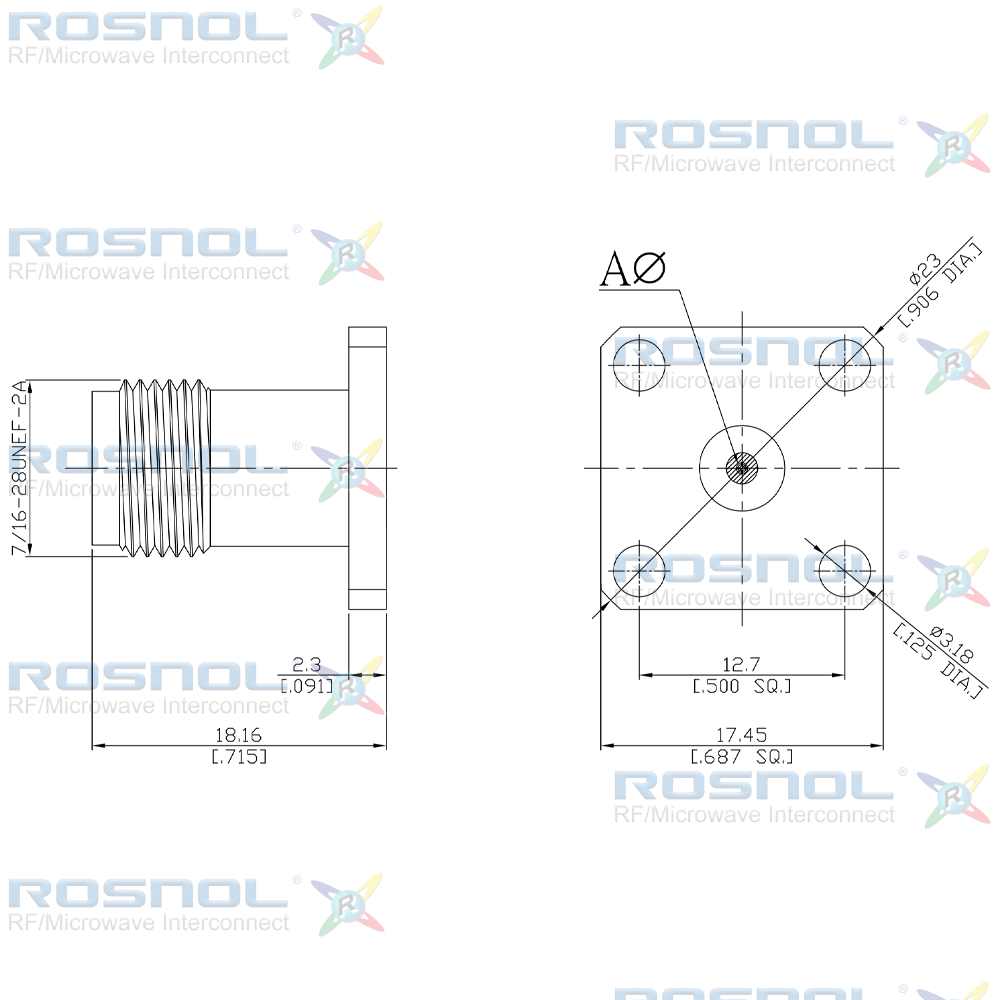

Precision TNC Jack (Female) Field Replaceable Connector
| Order No： | PCT2BF50-0020C/9X |
| Product Name： | Field Replaceable |
| Series： | Precision TNC |
| Gender： | Jack (Female) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Panel Mounting： | 4-Hole Flange |
| Backend Type： | Accepts Pin ∅0.51 [.020] |
| Application Field： | Test & Measuremen |
| Rsonl P/N： | PCT2BF50-0020C/9X |
Product Introduction
The PCT2BF50-0020C/9X is a Precision TNC female 4 hole panel flange coaxial connector which accepts a [∅51mm[0.20in] pin. This field replaceable connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The PCT2BF50-0020C/9X has a Beryllium Copper pin with Gold plating(Nickel underplated) and a Stainless Steel body with Passivated plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our Precision TNC jack] field replaceable coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol’s PCT2BF50-0020C/9X four hole panel flange Precision TNC female RF connector has a maximum frequency of 18 GHz and a max. As a result, this high-quality field replaceable is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
