Product Details

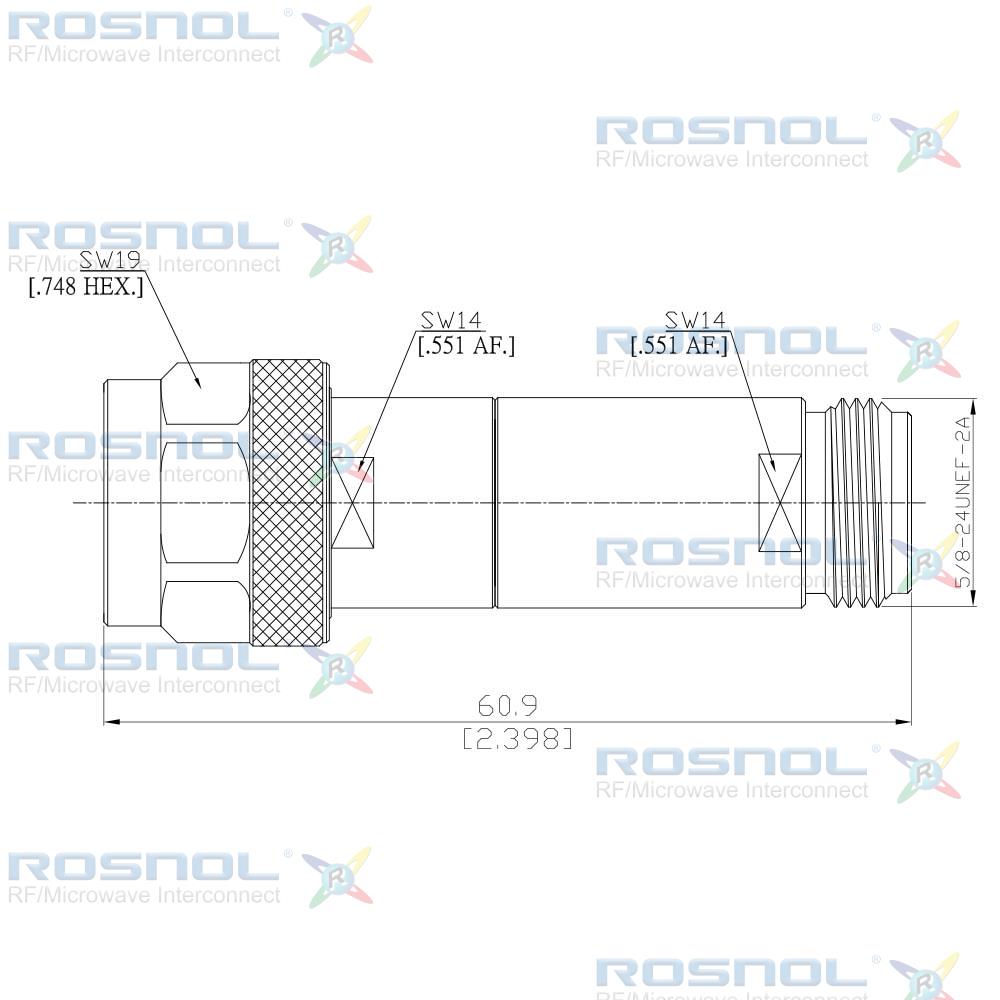

Impedance Matching Pads plug/jack N 75Ω plug (male) / N 50Ω jack (female)
| Order No： | MP-N17N25A-2G/144-H4 |
| Product Name： | Impedance Matching Pad |
| Series： | N |
| Gender： | Jack (Female) |
| Series 2 (Without Termination)： | N |
| Gender 2 (Without Termination)： | Plug (Male) |
| Frequency： | 2 GHz |
| Power： | 0.7 Watt |
| Application Field： | Test & Measurement |
| Rosnol P/N： | MP-N17N25A-2G/144-H4 |
Product Introduction
The MP-N17N25A-2G/144-H4 is an N 75 Ohm male to N 50 Ohm female impedance matching pads. This coaxial matching pad has an input power rating of 0.7 W Avg. to +40°C. The MP-N17N25A-2G/144-H4 RF impedance matching pad has an impedance of 75 Ohm at its F end and 50 Ohm at its SMA end. It has a straight body configuration made of brass with Nicke plating and is fully compliant to RF industry standards.
Similar to almost all of our countless other millimeter wave, microwave and RF components, our N 75 Ohm plug to N 50 Ohm jack radio frequency impedance matching pad is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's MP-N17N25A-2G/144-H4 N 75 Ohm male to N 50 Ohm RF DC block has a maximum frequency of 2 GHz and a max. VSWR of 1.25 or min. Return Loss of 19.08 dB. As a result, this high-quality impedance matching pad is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
