Product Details

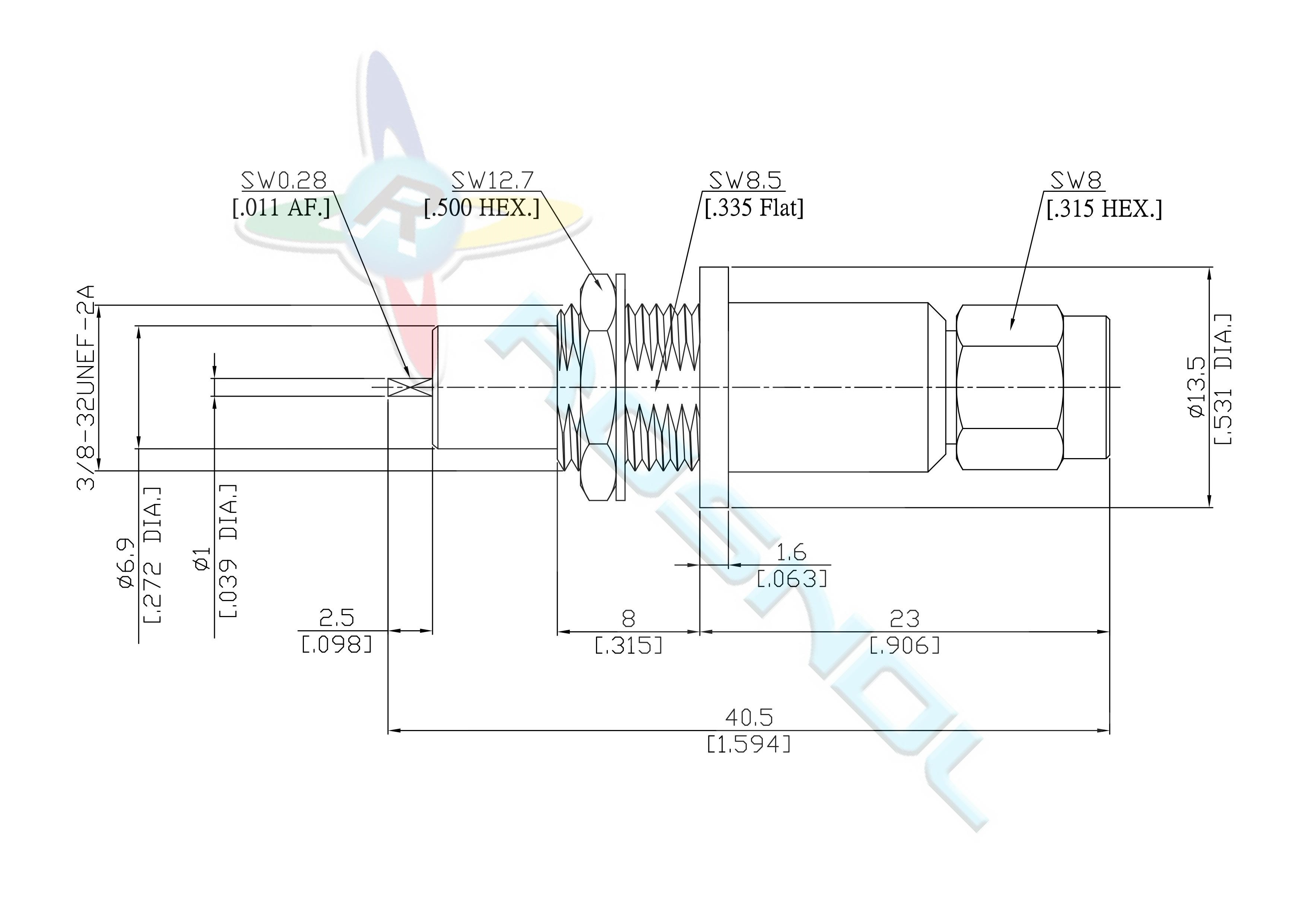

3.5mm Plug (Male) Straight Bulkhead Connector
| Order No： | PC1FD50-4050A/9XX |
| Product Name： | Bulkhead Receptacle |
| Series： | 3.5mm |
| Gender： | Plug (Male) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Panel Mounting： | Screw-In Type |
| Backend Type： | Flat End |
| Application Field： | Communication |
| Rsonl P/N： | PC1FD50-4050A／9XX |
Product Introduction
The PC1FD50-4050A/9XX is a 3.5mm plug male coaxial bulkhead connector with a flat end interface . This bulkhead replaceable connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The PC1FD50-4050A/9XX has a beryllium copper pin with gold plating (nickel underplated) and a stainless steel body with passivated plating . Similar to almost all of our countless other millimeter wave, microwave and RF components, our 3.5mm plug bulkhead replaceable coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's PC1FD50-4050A/9XX bulkhead male 3.5mm RF connector has a maximum frequency of 26.5 GHz and a max. VSWR of 1.3 or min. Return Loss of 17.7 dB. As a result, this high-quality bulkhead replaceable is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
