Product Details

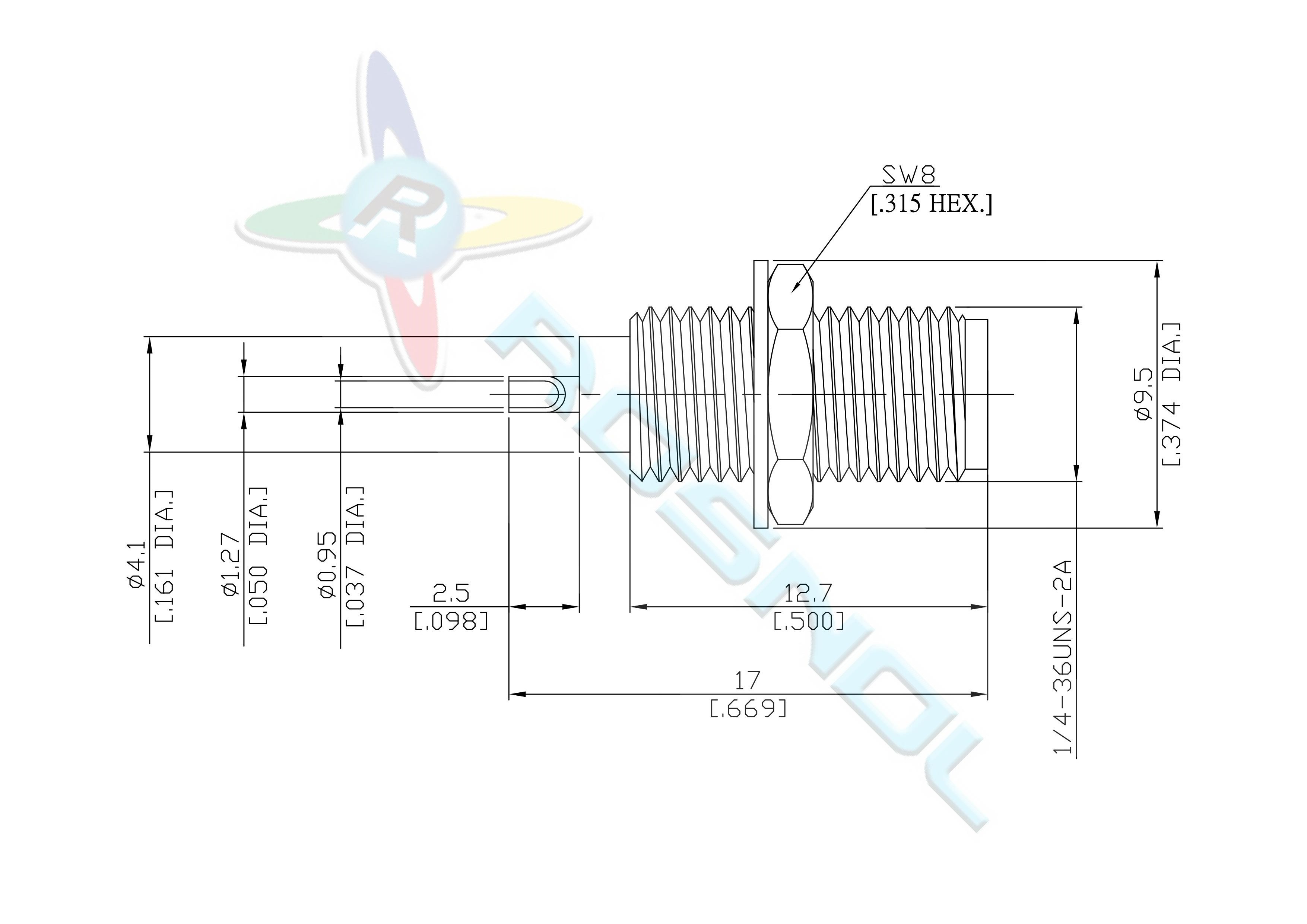

SMA Jack (Female) Straight Bulkhead Connector
| Order No： | SMA2FB50-1700C/91 |
| Product Name： | Bulkhead Receptacle |
| Series： | SMA |
| Gender： | Jack (Female) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Panel Mounting： | Screw-In Type |
| Backend Type： | Solder End |
| Application Field： | Communication |
| Rsonl P/N： | SMA2FB50-1700C/91 |
Product Introduction
The SMA2FB50-1700C/91 is a SMA jack female coaxial bulkhead connector with a solder end interface . This bulkhead replaceable connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The SMA2FB50-1700C/91 has a beryllium copper pin with gold plating (nickel underplated) and a brass body with gold plating (nickel underplated) . Similar to almost all of our countless other millimeter wave, microwave and RF components, our SMA jack bulkhead replaceable coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's SMA2FB50-1700C/91 bulkhead female SMA RF connector has a maximum frequency of 18 GHz and a max. VSWR of 1.25 or min. Return Loss of 19.1 dB. As a result, this high-quality bulkhead replaceable is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
LMR is a Trademark of Times Microwave
