Product Details

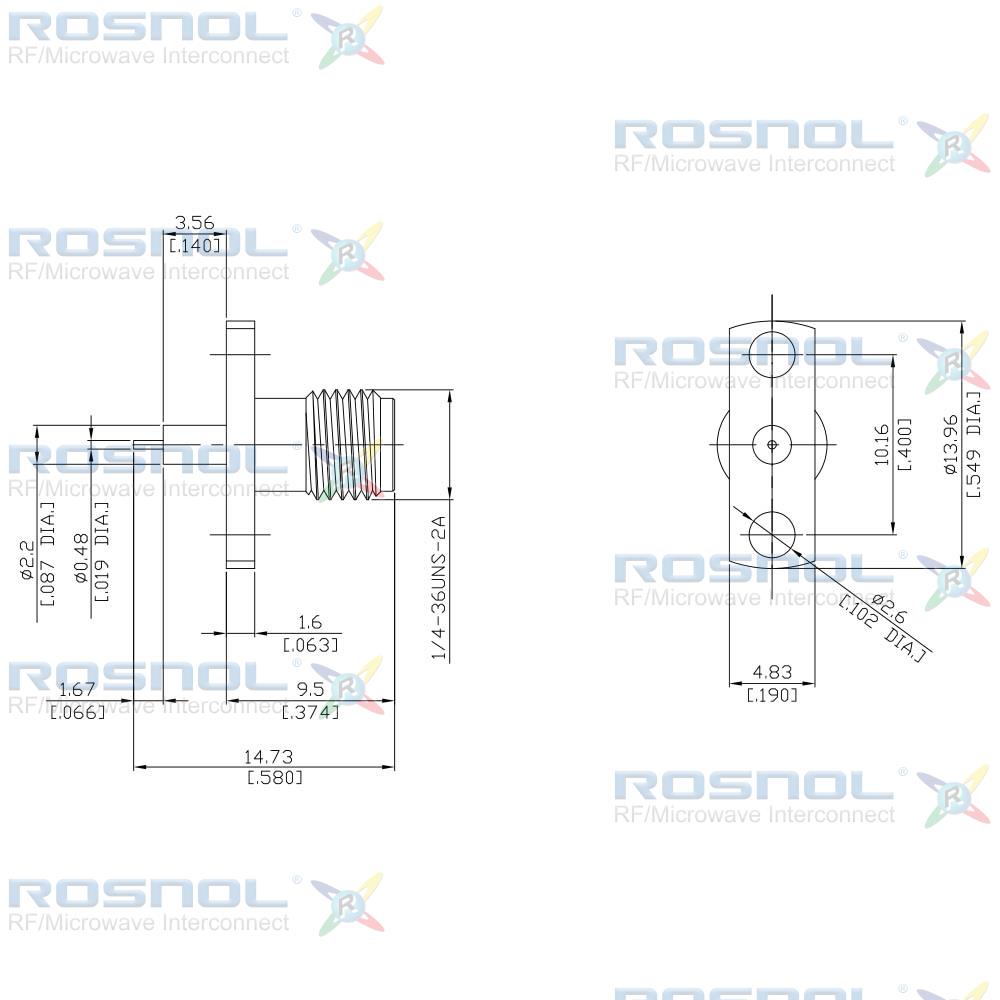

Precision SMA Straight Panel Receptacle Jack (Coaxial End)

Order No:PCA2GTA50-1473B/9X
Product Name:Panel Receptacle
Series:Precision SMA
Gender:Jack (Female)
Configuration:Straight
Captivation:Mechanical Captivation
Panel Mounting:2-Hole Flange
Backend Type:Coaxial End
Application Field:Test & Measuremen
Rsonl P/N:PCA2GTA50-1473B/9X

Product Introduction

The PCA2GTA50-1473B/9X is a Precision SMA female 2 hole panel flange coaxial connector with a coaxial end interface. This terminal connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.

The PCA2GTA50-1473B/9X has a Beryllium Copper pin with Gold plating(Nickel underplated) plating and a Stainless Steel body with Passivated plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our Precision SMA jack terminal coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).

Rosnol’s PCA2GTA50-1473B/9X two hole panel flange Precision SMA female RF connector has a maximum frequency of 27 GHz and a max. VSWR of 1.20 GHz or min. Return Loss of 20.83 dB. As a result, this high-quality panel connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.

Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
