Product Details

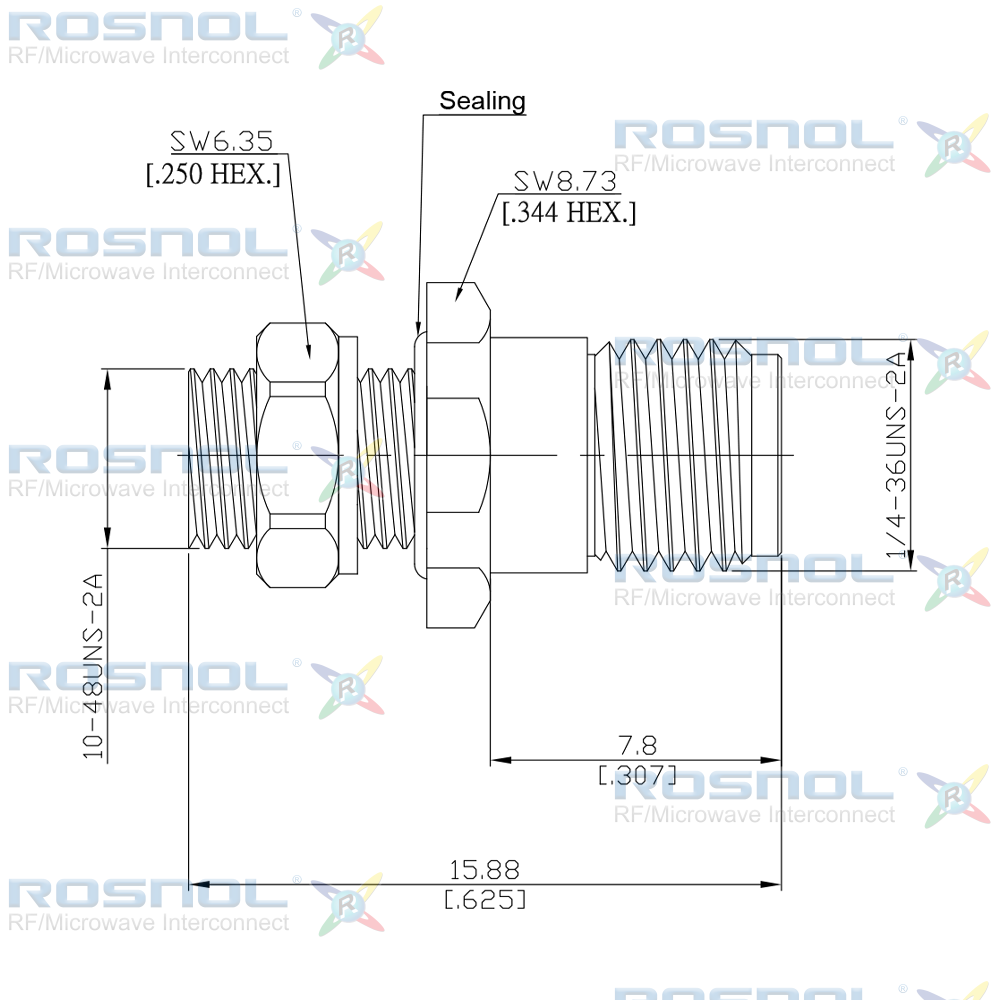

Bulkhead adaptor jack/jack SMP smooth bore plug (male) / Precision SMA jack (female)
| Order No： | AD-PS1PCA25A-BH/9X-9X |
| Product Name： | Adaptor |
| Series： | SMP |
| Gender： | Plug (Male) |
| Series 2： | Precision SMA |
| Gender 2： | Jack (Female) |
| Configuration： | Straight |
| Panel Mounting： | Hexagonal Flange With Nut |
| Application Field： | Test & Measurement |
| Rosnol P/N： | AD-PS1PCA25A-BH/9X-9X |
Product Introduction
The AD-PS1PCA25A-BH/9X-9X is a SMP male to Precision SMA female coaxial bulkhead adaptor. This in-series precision adaptor design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight adaptor configuration.
Similar to almost all of our countless other millimeter wave, microwave and RF components, our SMP plug to Precision SMA jack coaxial adapter is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's AD-PS1PCA25A-BH/9X-9X SMP male to SMA female RF adapter has a maximum frequency of 26.5 GHz and a max. VSWR of 1.15 or min. Return Loss of 23.13 dB. As a result, this high-quality adaptor is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001) factory. Customization (material, plating, body, etc.) is possible upon request.
