Precision TNC Straight Panel Receptacle Bulkhead Jack (Flat End)
| Order No： | PCT2GFDA50-3251A/9X |
| Product Name： | Panel Receptacle |
| Series： | Precision TNC |
| Gender： | Jack (Female) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Panel Mounting： | 4-Hole Flange |

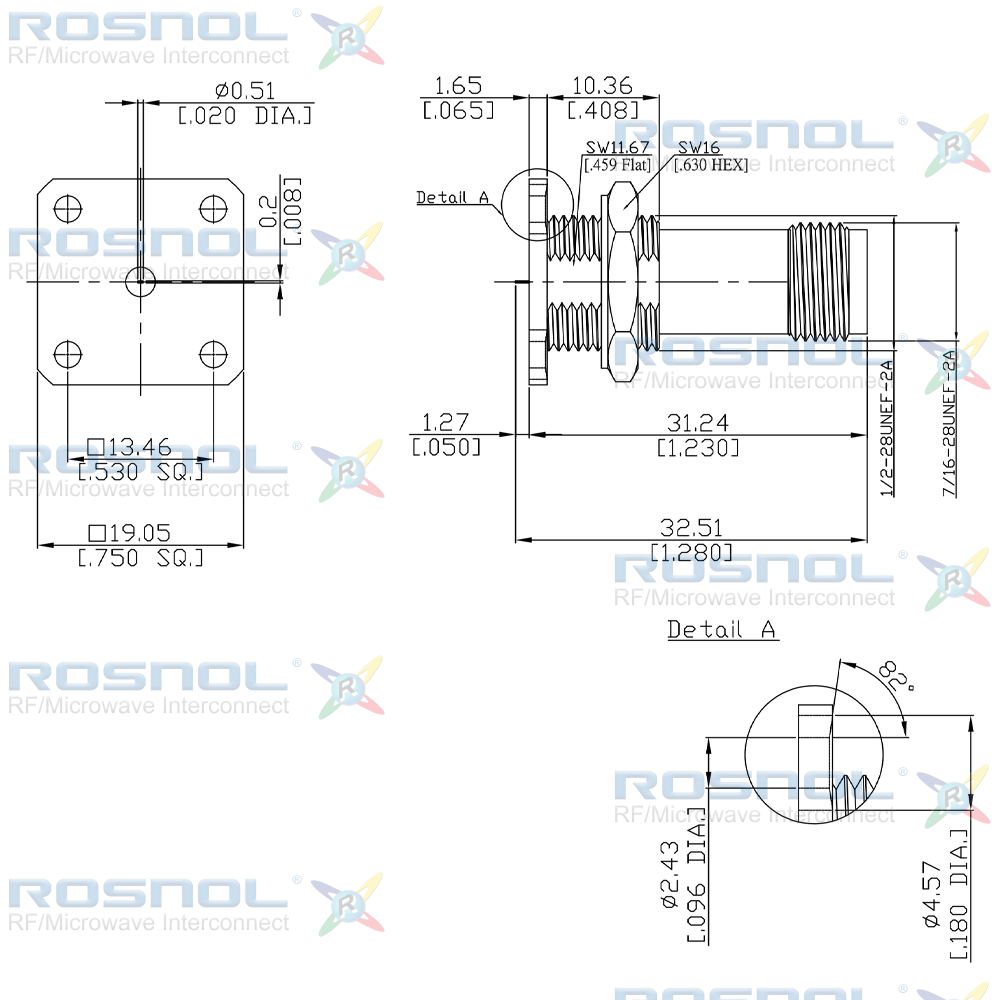

| Flange Dimension： | 19.05 X 19.05 |
| Backend Type： | Flat End |
| Application Field： | Test & Measuremen |
| Rsonl P/N： | PCT2GFDA50-3251A/9X |
Product Introduction
The PCT2GFDA50-3251A/9X is a Precision TNC female 4 hole panel flange coaxial connector with a flat end interface. This terminal connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The PCT2GFDA50-3251A/9X has a Beryllium Copper pin with Gold plating(Nickel underplated) and a Stainless Steel body with Passivated plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our Precision TNC jack terminal coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol’s PCT2GFDA50-3251A/9X four hole panel flange Precision TNC female RF connector has a maximum frequency of 18 GHz and a max. VSWR of 1.30 or min. Return Loss of 17.69 dB. As a result, this high-quality panel connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
