Product Details

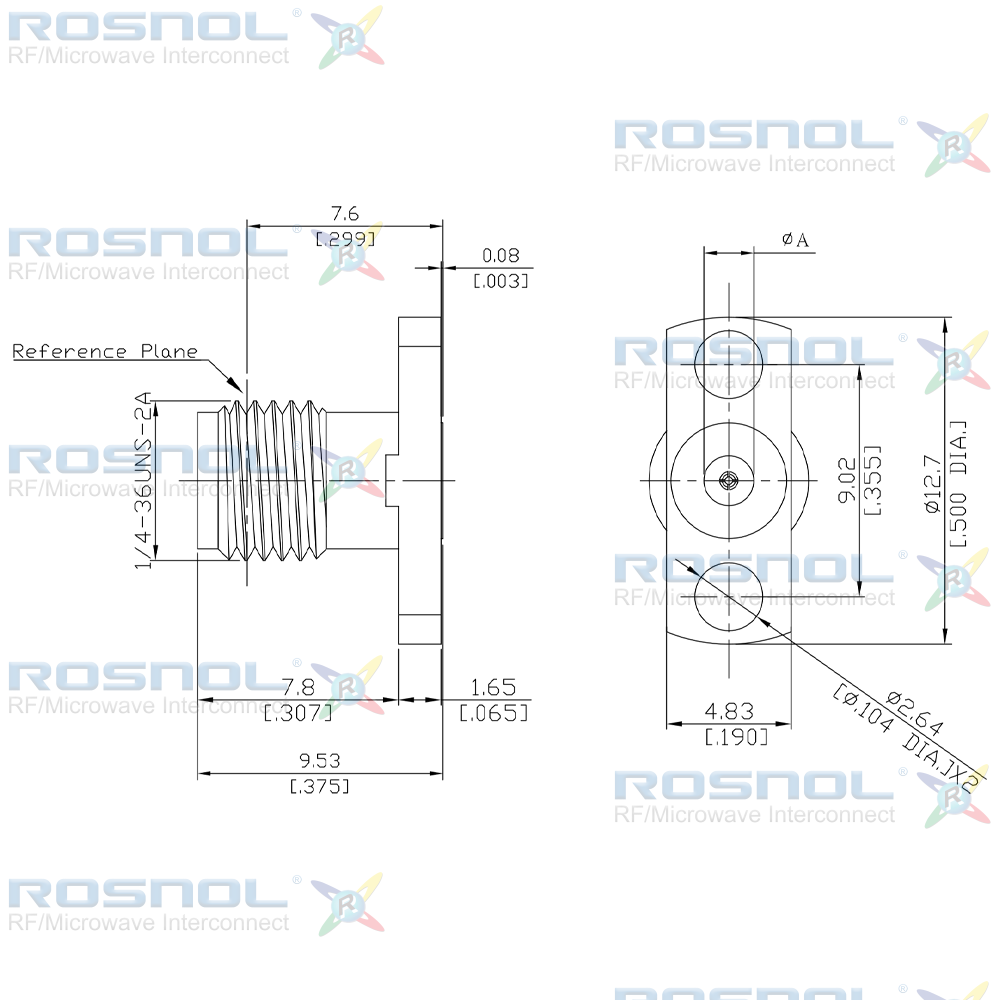

Precision SMA (Female) Straight Field Replaceable Jack
| Order No： | PCA2BT50-0009C/9X |
| Product Name： | Panel Receptacle |
| Series： | Precision SMA |
| Gender： | Jack (Female) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Panel Mounting： | 2-Hole Flange |
| Backend Type： | Accepts Pin ∅0.30 [.012] |
| Application Field： | Test & Measuremen |
| Rsonl P/N： | PCA2BT50-0009C/9X |
Product Introduction
The PCA2BT50-0009C/9X is a Precision SMA female 2 hole panel flange coaxial connector with a ∅0.30mm[.012in] interface. This field replaceable connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The PCA2BT50-0009C/9X has a Beryllium Copper pin with Gold plating(Nickel underplated) and a Stainless Steel body with Passivated plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our Precision SMA jack field replaceable coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol’s PCA2BT50-0009C/9X two hole panel flange Precision SMA female RF connector has a maximum frequency of 27 GHz and a max. VSWR of 1.15 or min. Return Loss of 23.13 dB. As a result, this high-quality field replaceable is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
