Product Details

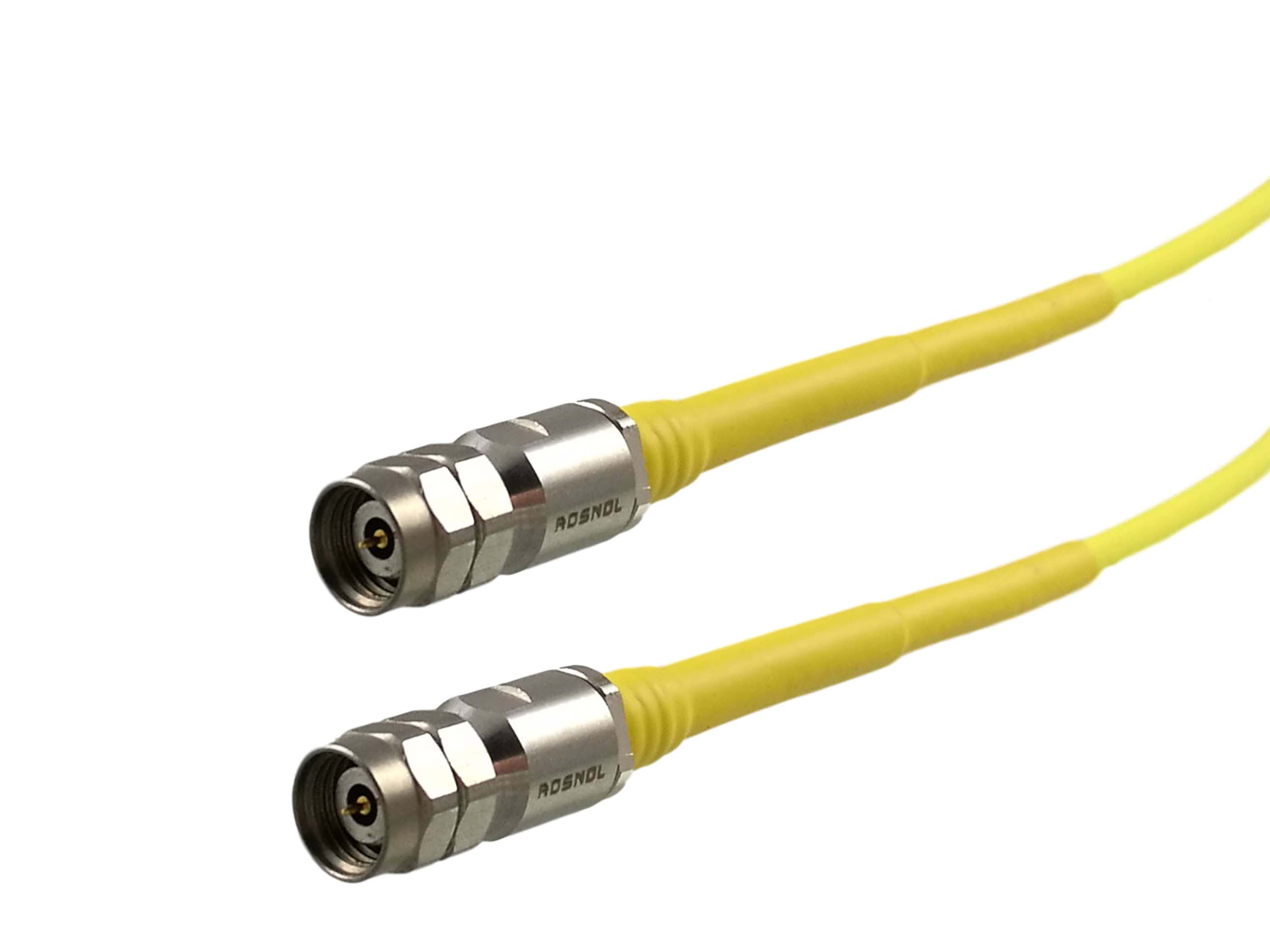

2.4mm Plug to 2.4mm Plug R-Test UP0220 Cable
| Order No： | Q1K50-UP0220-Q1K50-2000 |
| Product Name： | R-Test (RF Test Cable) |
| Left Side Series： | 2.4mm |
| Left Side Gender： | Plug (Male) |
| Left Side Configuration： | Straight |
| Cable： | R-Test UP0220 |
| Cable Length： | 2000 mm |
| Right Side Series： | 2.4mm |
| Right Side Gender： | Plug (Male) |
| Right Side Configuration： | Straight |
| Application Field： | Test & Measurement |
| Rosnol P/N： | Q1K50-UP0220-Q1K50-2000 |
Product Introduction
2.4mm Plug to 2.4mm Plug High Performance Cable Assemblies
The R-Test® UP family of cables offer you high performance flexible cable assemblies with the lowest insertion loss and highest frequency response when compared other cables of the same diameter.
They are designed with stainless steel RPC2.4
1) connectors and high precision dimension along with the strongest cable to connector termination of all the cables types.
A wide range of diameters, protective coverings and electrical options are available.
1) RPC2.4 stands for ROSNOL Precision 2.4mm Connectors
Features
- Frequency up to 50 GHz
- Silver Plated Copper Center Conductors
- 45% Lower Loss than Solid Dielectrics
- Higher Shielding Effectiveness
- Stainless Steel RPC2.4 (2.4mm) Connectors
- Direct Solder Sleeve to Outer Braids for superior reliability
- Phased Matched Pairs and Sets Available (standard tolerance is ± 1 degree per GHz or +/- 3.0 picoseconds)
- Available with Protective Coverings of:
- Stainless Steel Armor
- Armored With Weatherized (PVC)
- Extended Boots
