Product Details
N Terminations plug
| Order No： | T-PCN15-18G2WA/9XX |
| Product Name： | Termination |
| Series： | N |
| Gender： | Plug (Male) |
| Frequency： | 18 GHz |
| Power： | 2 Watt |
| Application Field： | Communication |
| Rosnol P/N： | T-PCN15-18G2WA/9XX |
Product Introduction

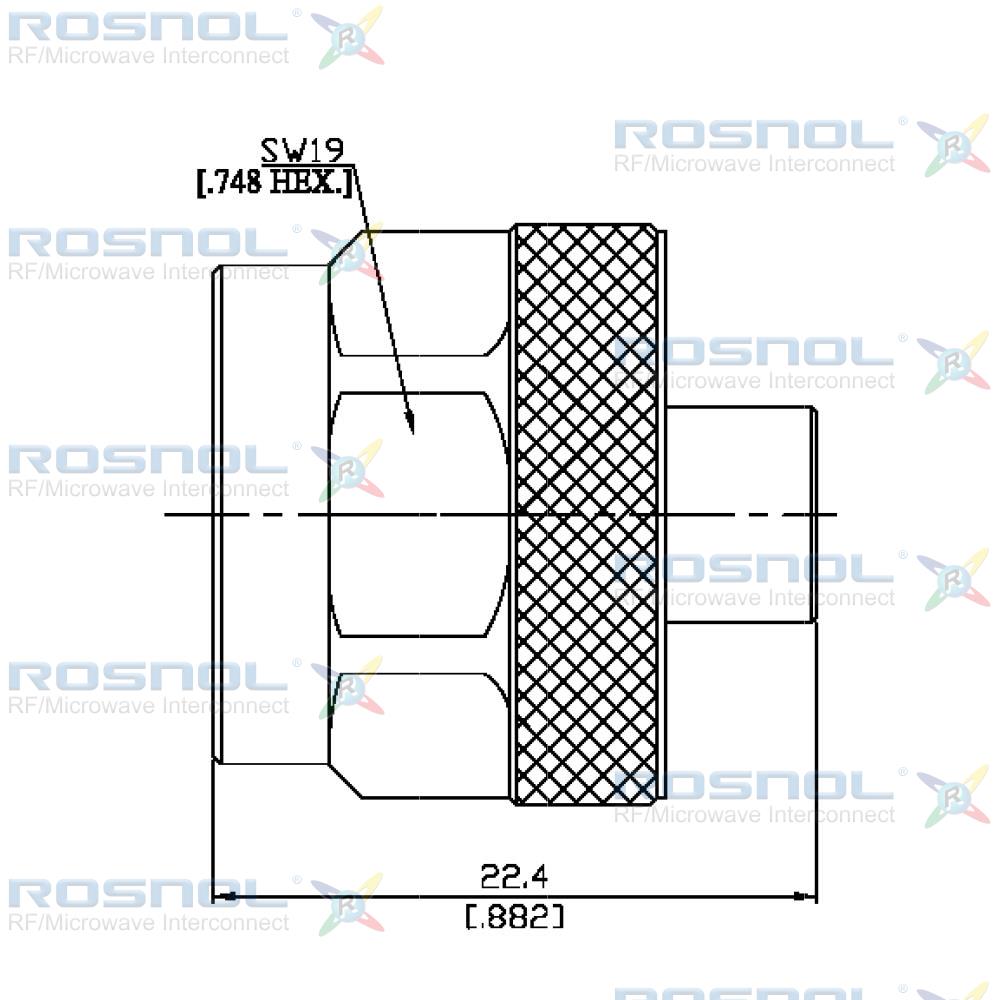

The T-PCN15-18G2WA/9XX is a N male coaxial 2 watt termination. This RF load termination design has an impedance of 50 Ohm and is fully compliant to RF industry standards. The 2 watt N male termination has a straight body configuration.
The T-PCN15-18G2WA/9XX dummy load has a berlium copper pin with gold plating(nickel underplated) and a stainless steel body with passivated plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our N plug coax terminator is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's T-PCN15-18G2WA/9XX male N RF termination has a maximum frequency of 18 GHz and a max. VSWR of 1.20 or min. Return Loss of 20.83 dB. As a result, this high-quality termination is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
