Product Details

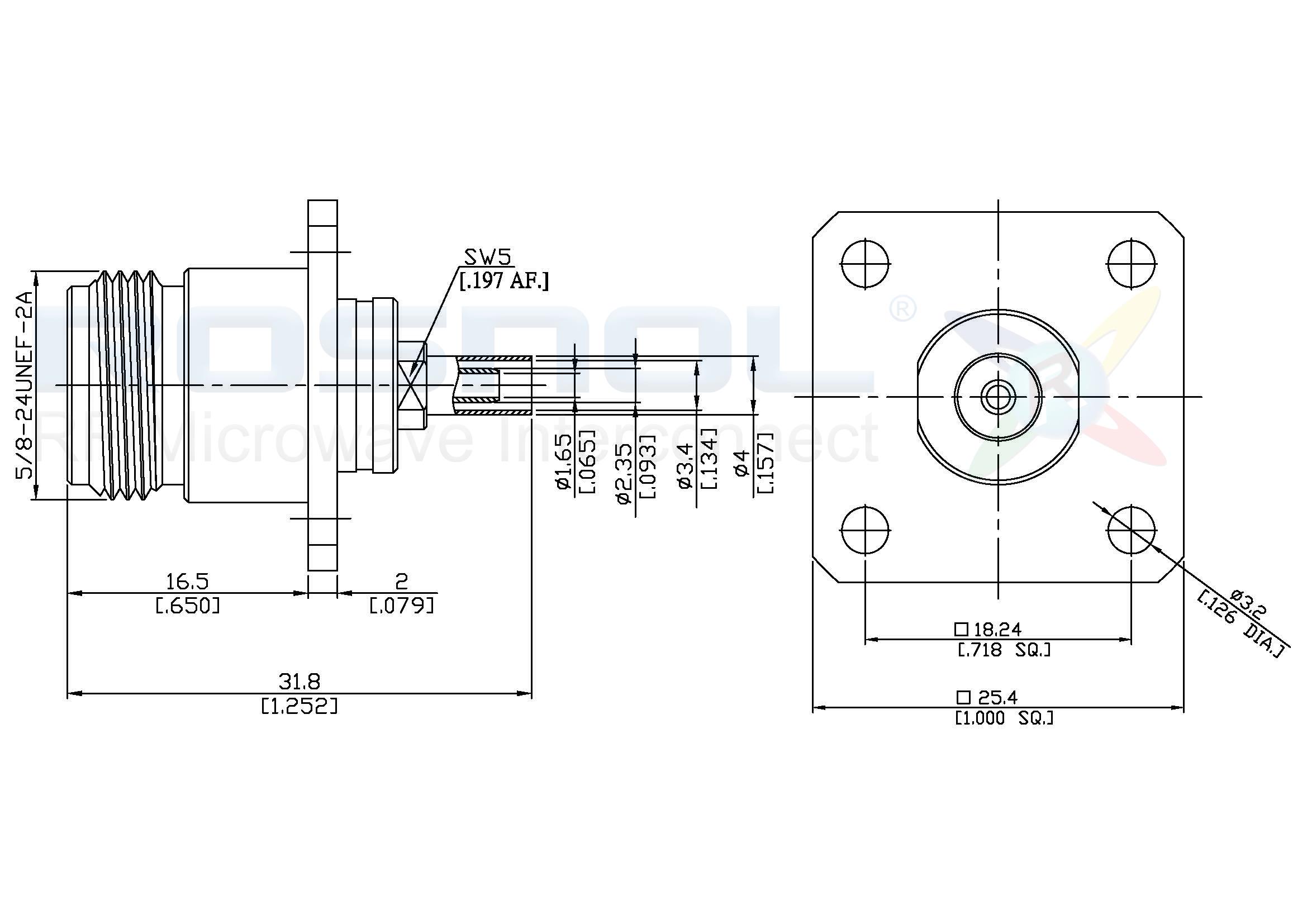

N Jack (Female) Straight 4 Hole Panel Flange Connector
| Order No： | N2CBF50-D316A/H4 |
| Product Name： | Cable Crimp |
| Series： | N |
| Gender： | Jack (Female) |
| Configuration： | Straight |
| Panel Mounting： | 4-Hole Flange |
| Suitable Cable： | RG-188 |
| Backend Type： | Cable Crimp |
| Application Field： | Communication |
| Rsonl P/N： | N2CBF50-D316A/H4 |
Product Introduction
The N2CBF50-D316A/H4 is a N female 4 hole panel flange coaxial connector with an interface type that suits RG-188 and RG-316-d. This terminal connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The N2CBF50-D316A/H4 has a phosphor bronze pin with gold plating (nickel underplated) and a brass body with copper-tin-zinc alloy plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our N jack terminal coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's N2CBF50-D316A/H4 four hole panel flange female N RF connector has a maximum frequency of 11 GHz and a max. VSWR of 1.22 or min. Return Loss of 20.1 dB. As a result, this high-quality panel connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
