Product Details

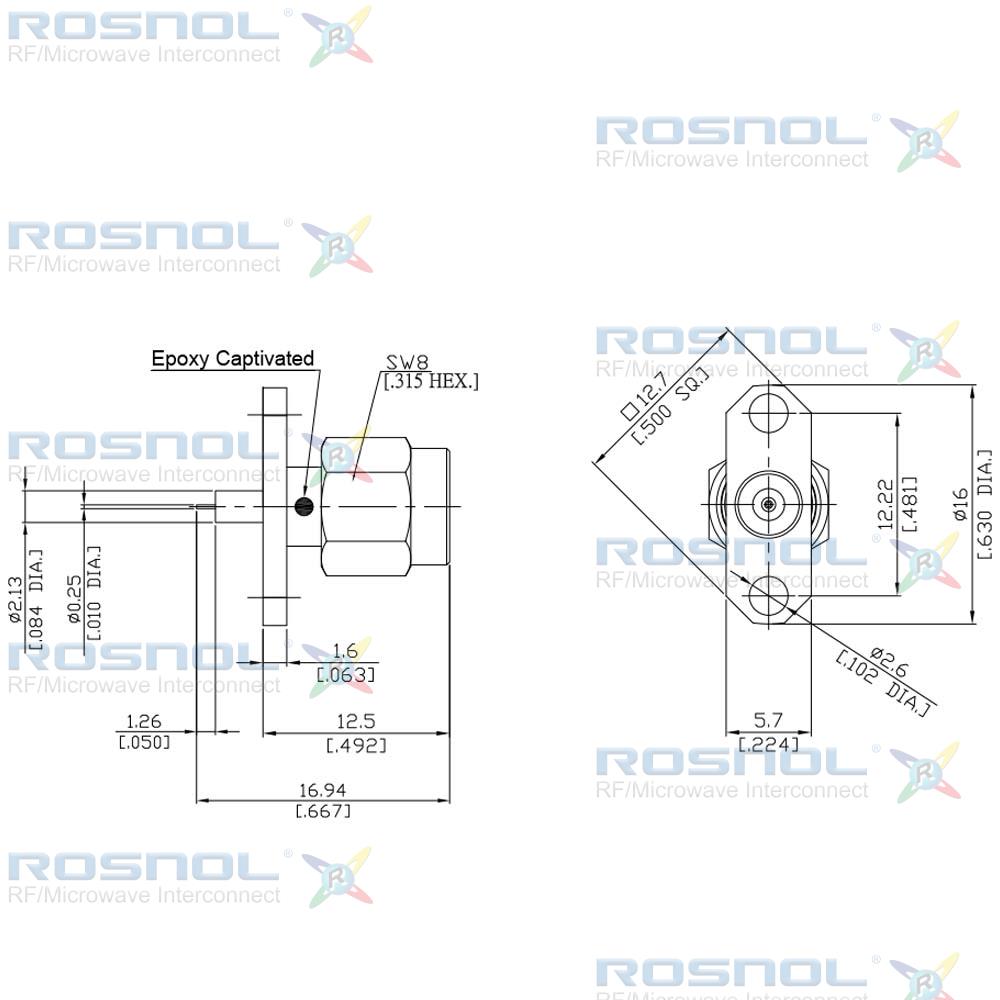

SMA Straight Panel Receptacle Plug (Coaxial End)
| Order No： | SMA1GTA50-1694A-EC/9XX |
| Product Name： | Panel Receptacle |
| Series： | SMA |
| Gender： | Plug (Male) |
| Configuration： | Straight |
| Captivation： | Epoxy Captivation |
| Panel Mounting： | 2-Hole Flange |
| Backend Type： | Coaxial End |
| Application Field： | Communication |
| Rsonl P/N： | SMA1GTA50-1694A-EC/9XX |
Product Introduction
The SMA1GTA50-1694A-EC/9XX is a SMA male 2 hole panel flange coaxial connector with a coaxial end interface. This terminal connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The SMA1GTA50-1694A-EC/9XX has a Beryllium Copper pin with Gold plating (Nickel underplated) and a Stainless Steel body with Passivated plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our SMA plug terminal coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol’s SMA1GTA50-1694A-EC/9XX two hole panel flange SMA male RF connector has a maximum frequency of 18 GHz and a max. VSWR of 1.25 or min. Return Loss of 19.08 dB. As a result, this high-quality panel connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
