Product Details

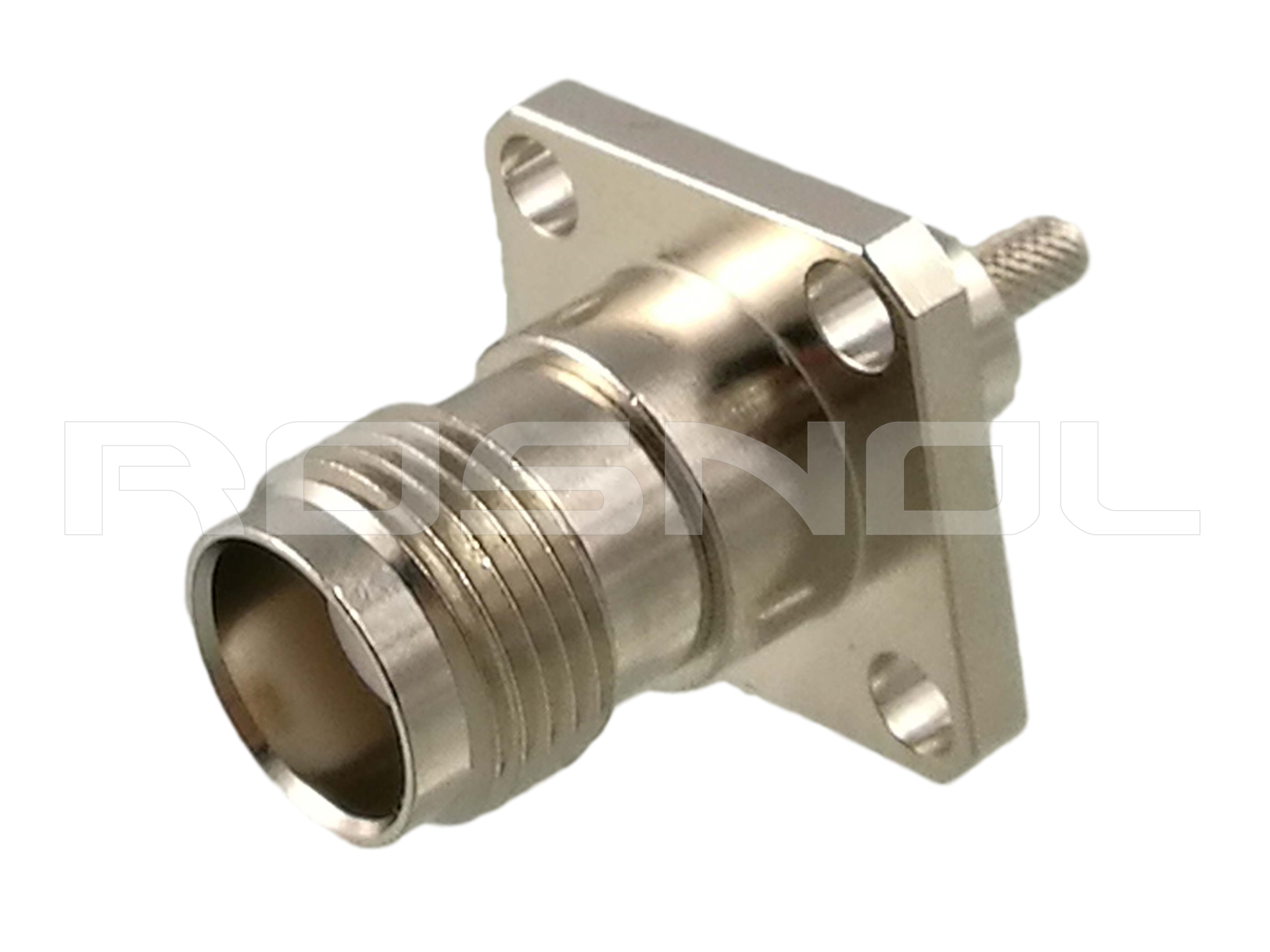

The TNC2CBF50-G316A/HX is a TNC female 4 hole panel flange coaxial connector with an interface type that suits RG-174, RG-188A, RG-316, LMR-100, RNL-100, BELDEN 7805. This terminal connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.

The TNC2CBF50-G316A/HX has a phosphor bronze pin with gold plating (nickel underplated) and a stainless steel body with passivated plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our TNC jack terminal coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).

Rosnol's TNC2CBF50-G316A/HX four hole panel flange female TNC RF connector has a maximum frequency of 11 GHz and a max. VSWR of 1.15 or min at DC to 2.5 GHz. Return Loss of 23.1 dB. As a result, this high-quality panel connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.

Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
