Product Details

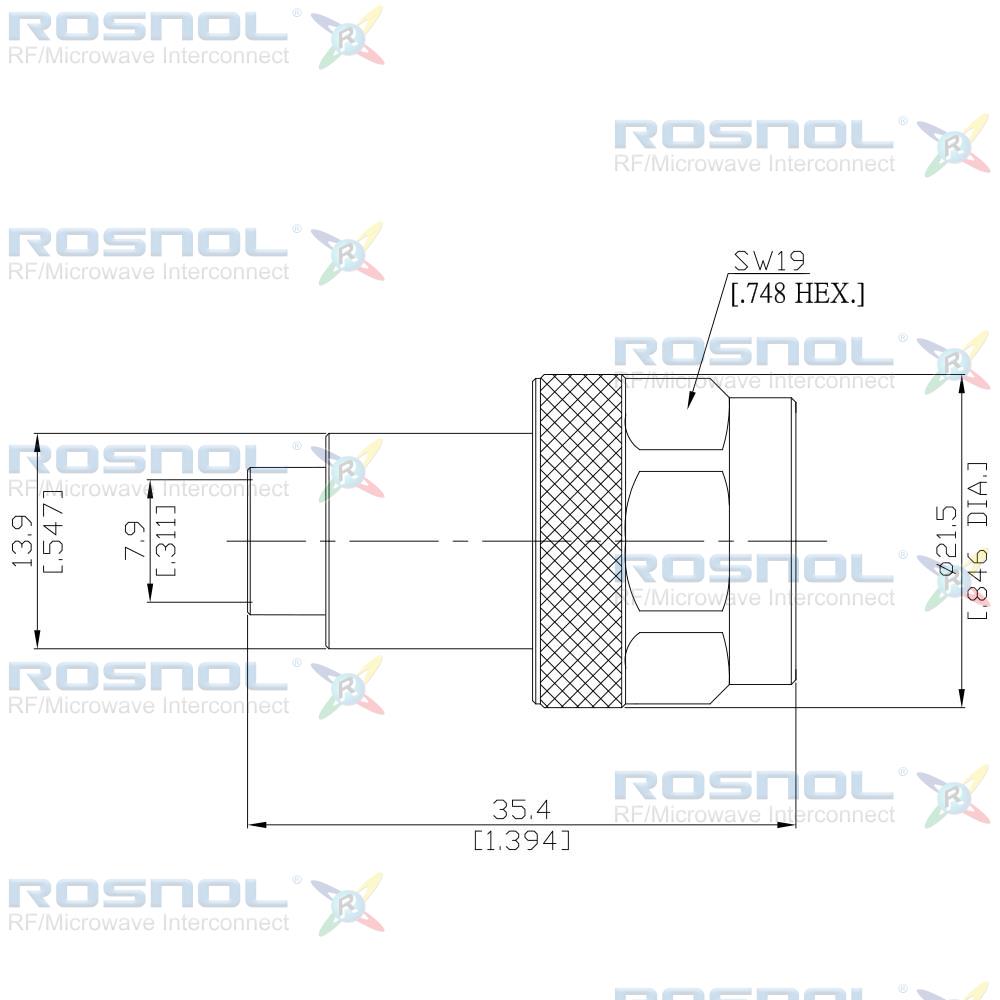

N Straight Cable Plug
| Order No： | N1E50-0630A/133 |
| Product Name： | Cable Solder |
| Series： | N |
| Gender： | Plug (Male) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Suitable Cable： | EW0420A |
| Backend Type： | Cable Solder |
| Application Field： | Communication |
| Rsonl P/N： | N1E50-0630A/133 |
Product Introduction
The N1E50-0630A/133 is a N male coaxial connector with an interface type that suits EW0420, EW0420A; EW0420B. Its attachment method is Soldered for the pin and Soldered for the cable. This connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The N1E50-0630A/133 has a Brass pin with Gold plating(Nickel underplated) plating and a Brass body with Nickel plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our N plug coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol’s N1E50-0630A/133 N male RF connector has a maximum frequency of 10 GHz and a max. VSWR of 1.25 GHz or min. Return Loss of 19.08 dB. As a result, this high-quality cable connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
LMR is a Trademark of Times Microwav
