Product Details

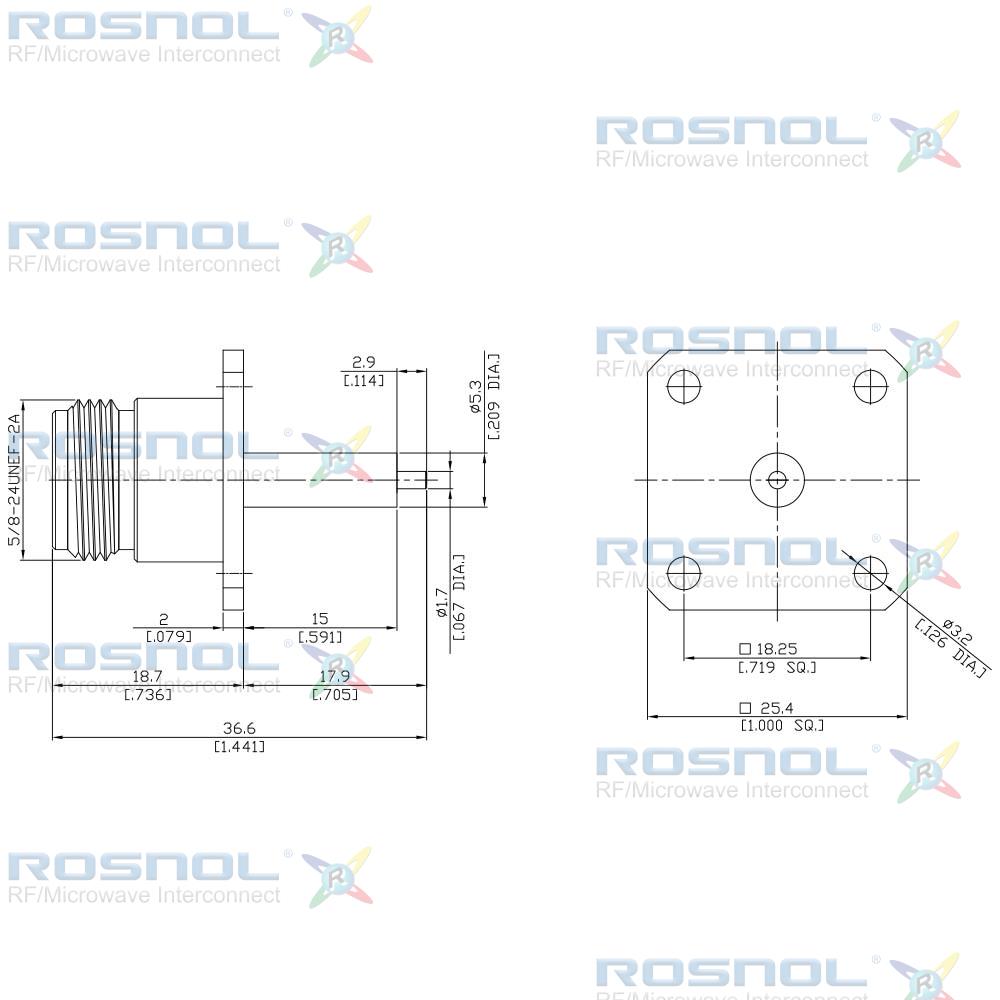

Precision N Straight Panel Receptacle Jack (Coaxial End)
| Order No： | PCN2GFA50-3660A/9X |
| Product Name： | Panel Receptacle |
| Series： | Precision N |
| Gender： | Jack (Female) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Panel Mounting： | 4-Hole Flange |
| Flange Dimension： | 25.4 X 25.4 |
| Backend Type： | Coaxial End |
| Application Field： | Test & Measuremen |
| Rsonl P/N： | PCN2GFA50-3660A/9X |
Product Introduction
The PCN2GFA50-3660A/9X is a Precision N female 2 hole panel flange coaxial connector with a coaxial end interface. This terminal connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.
The PCN2GFA50-3660A/9X has a Beryllium Copper pin with Gold plating(Nickel underplated) and a Stainless Steel body with Passivated plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our Precision N jack terminal coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol’s PCN2GFA50-3660A/9X two hole panel flange Precision N female RF connector has a maximum frequency of 18 GHz and a max. As a result, this high-quality panel connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
