Product Details
SMA Straight PCB Jack Coaxial Pin
| Order No： | SMA2H3A50-0060A/91 |
| Product Name： | PCB End Launch Mount |
| Series： | SMA |
| Gender： | Jack (Female) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Panel Mounting： | PCB Flange With Nut |
| Backend Type： | Coaxial End |
| Application Field： | Communication |
| Rsonl P/N： | SMA2H3A50-0060A/91 |
Product Introduction

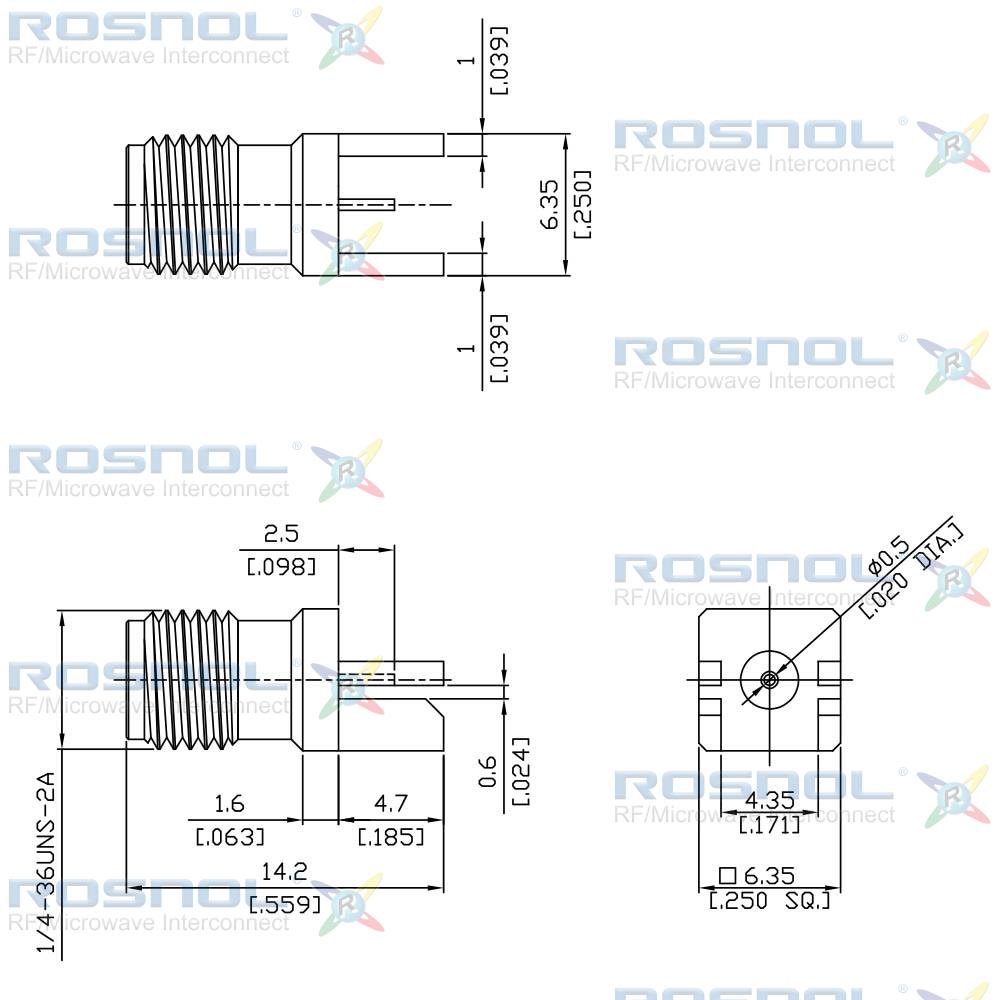

The SMA2H3A50-0060A/91 is a SMA female end launch pcb connector with a coaxial end interface. This end launch connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight coaxial connector configuration with a backend pin diameter of 0.5mm [.020in].
The SMA2H3A50-0060A/91 has a Beryllium Copper pin with Gold plating(Nickel underplated) and a Brass body with Gold plating(Nickel underplated). Similar to almost all of our countless other millimeter wave, microwave and RF components, our SMA jack end launch mount is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol’s SMA2H3A50-0060A/91 end launch SMA female RF connector has a maximum frequency of 18 GHz and a max. VSWR of 1.30 GHz or min. Return Loss of 17.69 dB. As a result, this high-quality end launch mount is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
