Product Details

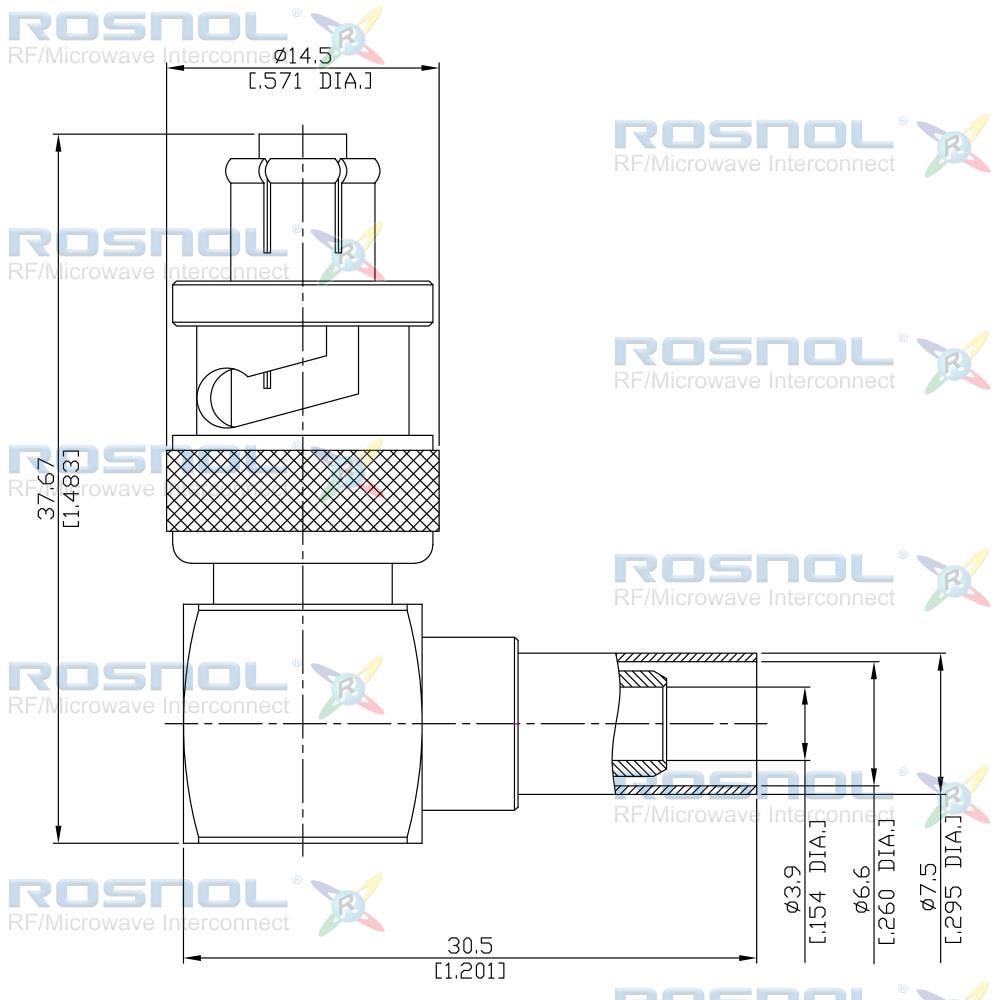

SHV Right-Angle Cable Crimp Plug
| Order No： | SHV1C79-G059A/133 |
| Product Name： | Cable Crimp |
| Series： | SHV |
| Gender： | Plug (Male) |
| Configuration： | Right Angle |
| Captivation： | Mechanical Captivation |
| Suitable Cable： | Belden 8263 |
| Backend Type： | Cable Crimp |
| Application Field： | Communication |
| Rsonl P/N： | SHV1C79-G059A/133 |
Product Introduction
The SHV1C79-G059A/133 is a right angle SHV male coaxial connector with an interface type that suits RG 59, RG62, RG140, RG210, G 04233- 2, URM 104, Video 0.6/3.7, BELDEN 8263, 8279, 9209. Its attachment method is Soldered for the pin and Crimped for the cable. This connector design has an impedance of 75 Ohm and is fully compliant to RF industry standards. It has a 90 degree elbow connector configuration.
The SHV1C79-G059A/133 has a Brass pin with Gold plating(Nickel underplated) and a Brass body with Nickel plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our right angle SHV plug coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol’s SHV1C79-G059A/133 right angle SHV male RF connector has a maximum frequency of 300 MHz and a max. VSWR of 1.25 or min. Return Loss of 19.08 dB. As a result, this high-quality cable connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol’s millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
LMR is a Trademark of Times Microwave
