Product Details

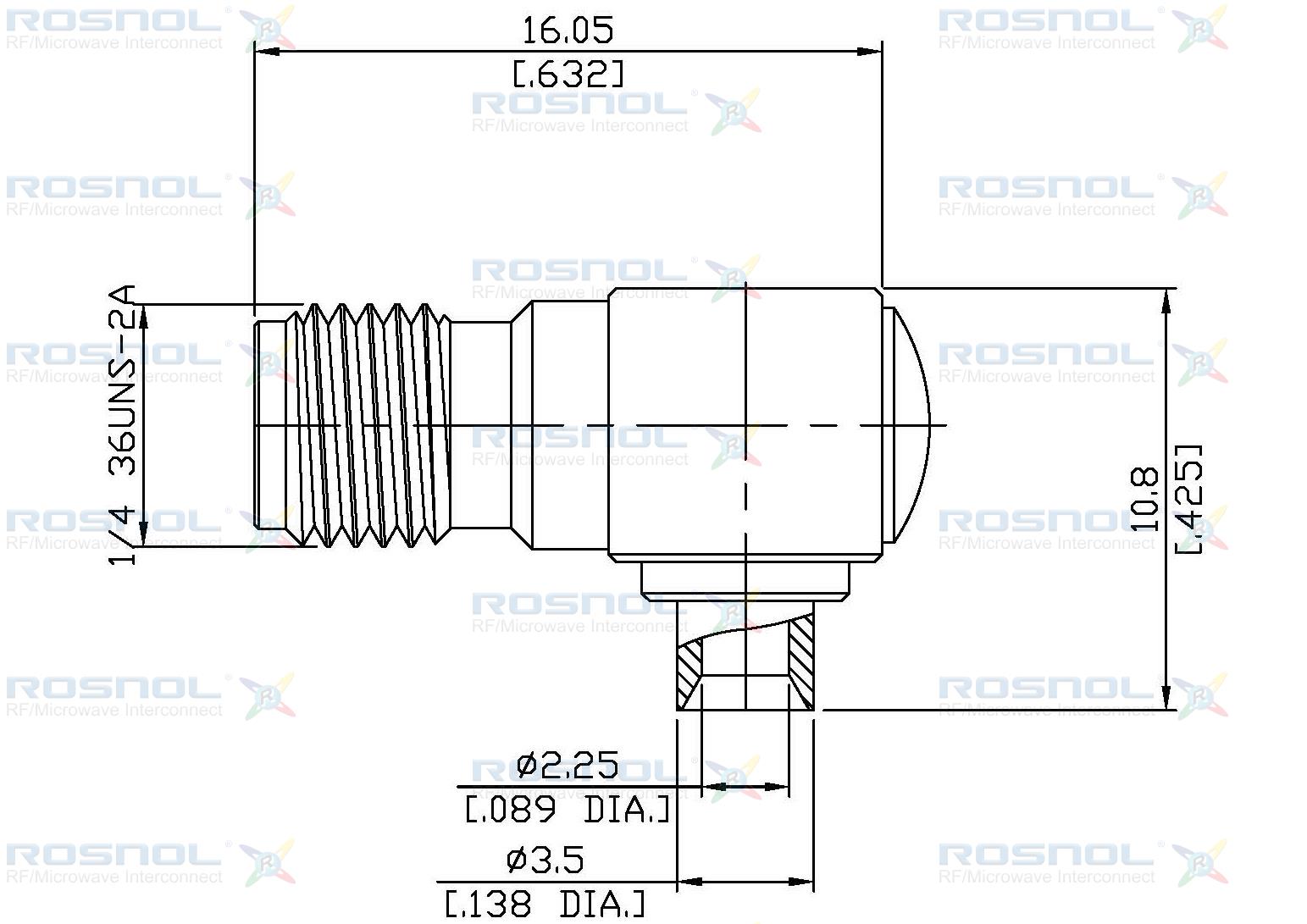

SMA Jack (Female) Right Angle Solder Connector

Order No:SMA2E59-0085A/91
Product Name:Cable Solder
Series:SMA
Gender:Jack (Female)
Configuration:Right Angle
Captivation:Mechanical Captivation
Suitable Cable:Belden 1671A
Backend Type:Cable Solder
Application Field:Communication
Rsonl P/N:SMA2E59-0085A/91

Product Introduction

The SMA2E59-0085A/91 is a right angle SMA female coaxial connector with an interface type that suits RSR-085, RSF-085, RSF-085-FEP, UT 85, RG 405/U, RTK- FS 085, RTK- Flex 405, BELDEN 1671A. Its attachment method is solder for the pin and solder for the cable. This connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a 90 degree elbow connector configuration.

The SMA2E59-0085A/91 has a beryllium copper pin with gold plating (nickel underplated) and a brass body with gold plating (nickel underplated). Similar to almost all of our countless other millimeter wave, microwave and RF components, our right angle SMA jack coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).

Rosnol's SMA2E59-0085A/91 right angle female SMA RF connector has a maximum frequency of 12 GHz and a max. VSWR of 1.30 or min. Return Loss of 17.7 dB. As a result, this high-quality cable connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.

Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001) factory. Customization (material, plating, body, etc.) is possible upon request.

LMR is a Trademark of Times Microwave
