Product Details

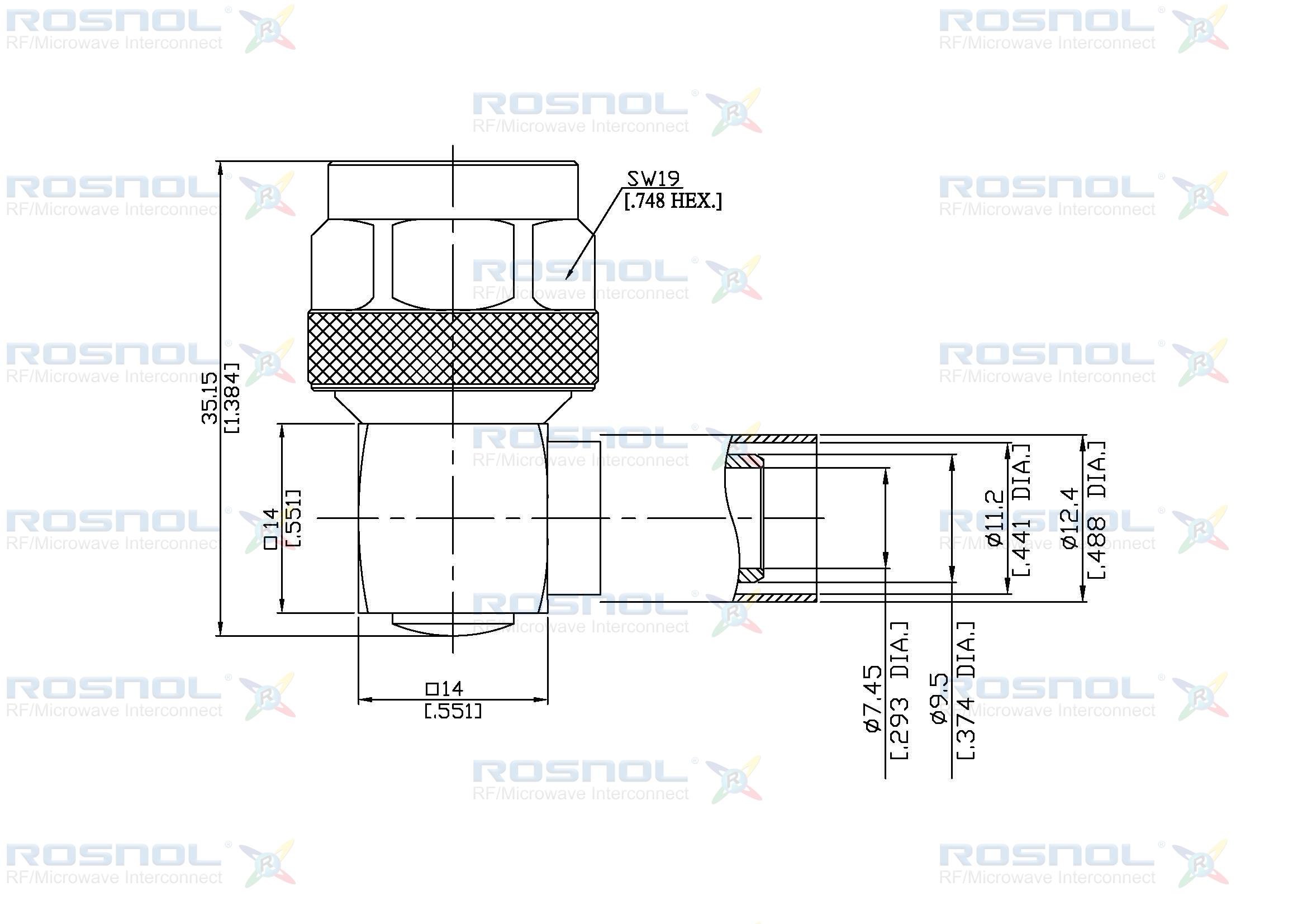

N Plug (Male) Right Angle Cable Connector
| Order No： | N1C59-G214B/144 |
| Product Name： | Cable Crimp |
| Series： | N |
| Gender： | Plug (Male) |
| Configuration： | Right Angle |
| Captivation： | Mechanical Captivation |
| Suitable Cable： | RG-9 |
| Backend Type： | Cable Crimp |
| Application Field： | Communication |
| Rsonl P/N： | N1C59-G214B/144 |
Product Introduction
The N1C59-G214B/144 is a right angle N male coaxial connector with an interface type that suits RG-9, RG-214, RG-225 and RG-393. Its attachment method is solder for the pin and crimp for the cable. This connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a 90 degree elbow connector configuration.
The N1C59-G214B/144 has a brass pin with gold plating (nickel underplated) and a brass body with copper-tin-zinc alloy plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our right angle N plug coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's N1C59-G214B/144 right angle male N RF connector has a maximum frequency of 3 GHz and a max. VSWR of 1.30 or min. Return Loss of 17.7 dB. As a result, this high-quality cable connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001) factory. Customization (material, plating, body, etc.) is possible upon request.
LMR is a Trademark of Times Microwave
