Product Details

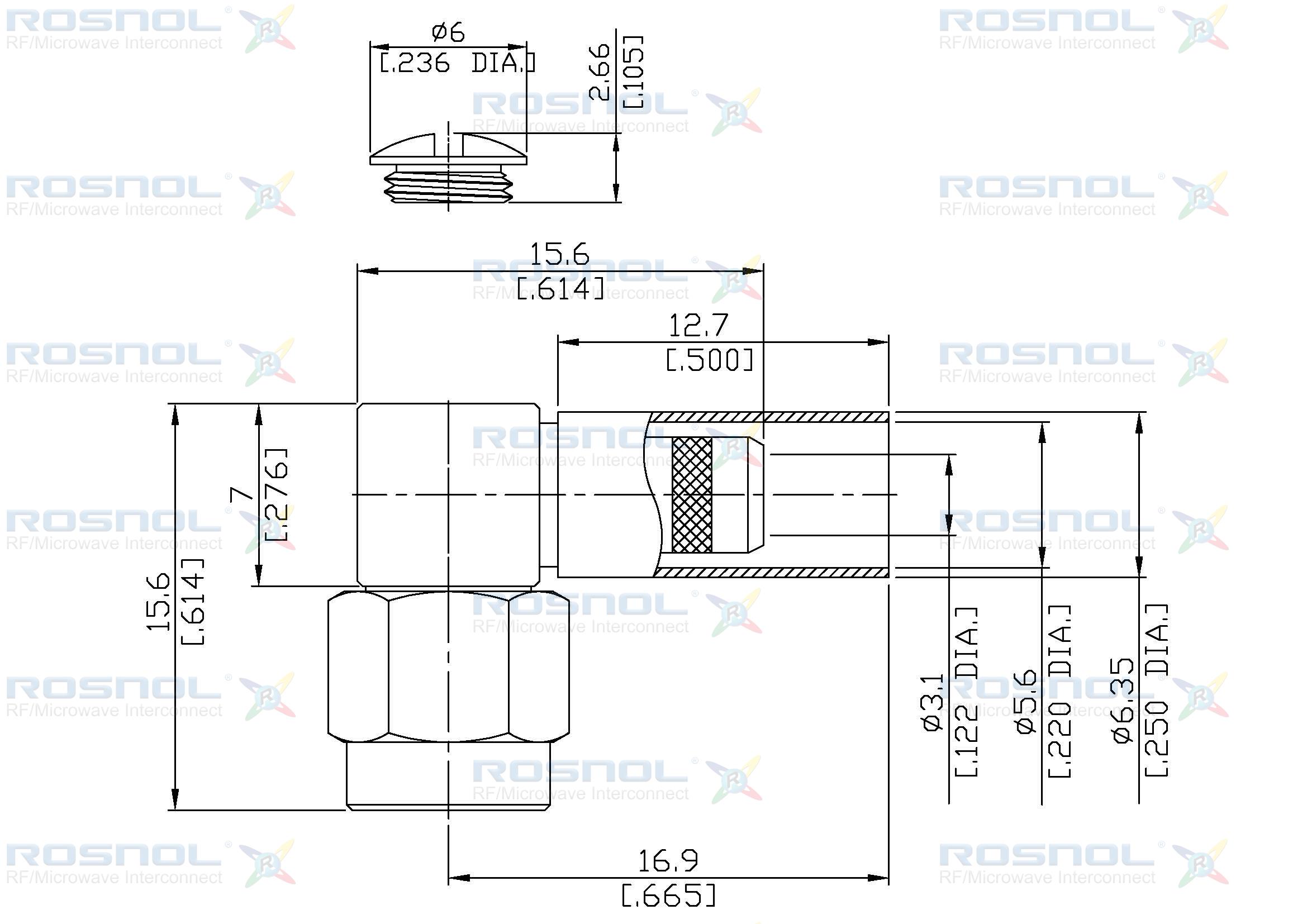

SMA Plug (Male) Right Angle Cable Connector
| Order No： | SMA1C59-G142A/944 |
| Product Name： | Cable Crimp |
| Series： | SMA |
| Gender： | Plug (Male) |
| Configuration： | Right Angle |
| Captivation： | Mechanical Captivation |
| Suitable Cable： | RG-223 |
| Backend Type： | Cable Crimp |
| Application Field： | Communication |
| Rsonl P/N： | SMA1C59-G142A/944 |
Product Introduction
The SMA1C59-G142A/944 is a right angle SMA male coaxial connector with an interface type that suits RG 55, RG 142, RG 223, and RG 400. Its attachment method is solder for the pin and crimp for the cable. This connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a 90 degree elbow connector configuration.
The SMA1C59-G142A/944 has a beryllium copper pin with gold plating (nickel underplated) and a brass body with copper-tin-zinc alloy plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our right angle SMA plug coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's SMA1C59-G142A/944 right angle male SMA RF connector has a maximum frequency of 3 GHz and a max. VSWR of 1.20 or min. Return Loss of 20.1 dB. As a result, this high-quality cable connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001) factory. Customization (material, plating, body, etc.) is possible upon request.
LMR is a Trademark of Times Microwave
