Product Details

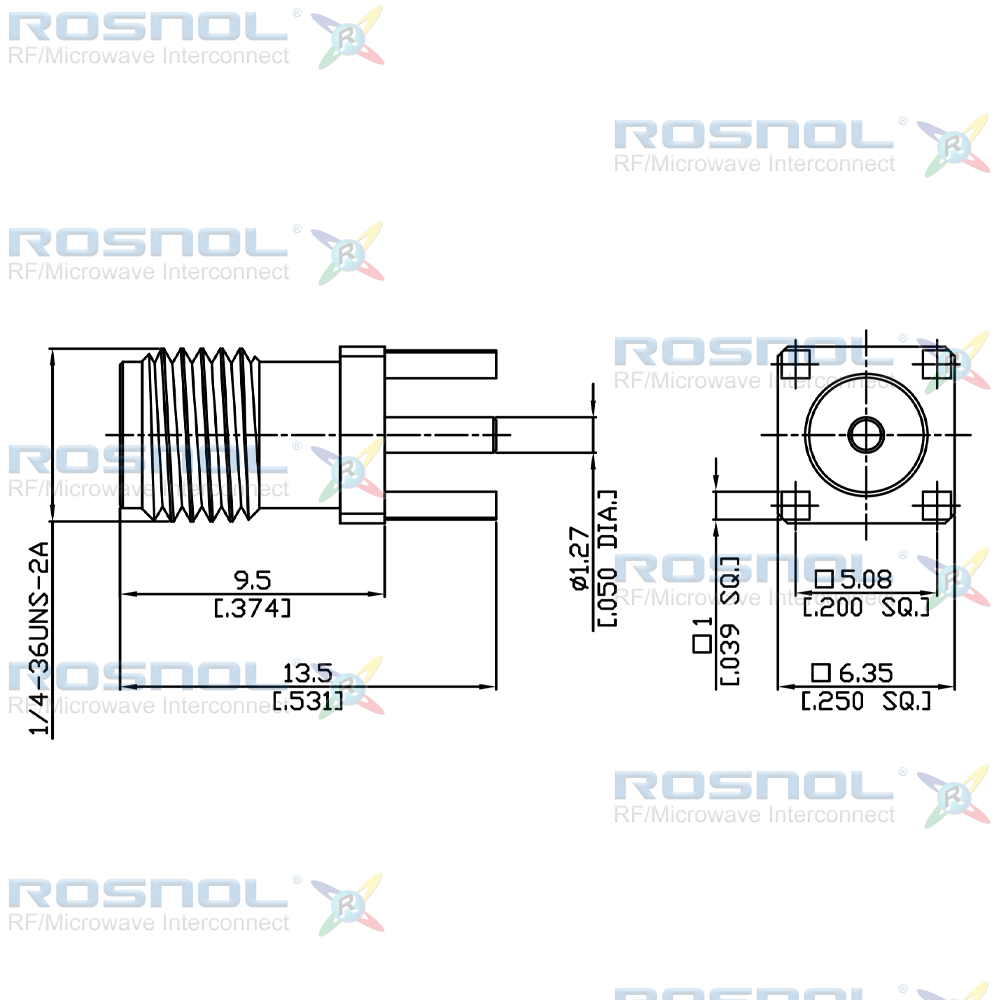

SMA Straight PCB Through Holes Mount Jack (Female) | Coaxial End
| Order No： | SMA2I50-1350A/91 |
| Product Name： | PCB Through Holes Mount |
| Series： | SMA |
| Gender： | Jack (Female) |
| Configuration： | Straight |
| Captivation： | Mechanical Captivation |
| Backend Type： | Coaxial End |
| Application Field： | Communication |
| Rsonl P/N： | SMA2I50-1350A/91 |
Product Introduction
The SMA2I50-1350A/91 is a female SMA thru hole pcb connector. This thru hole connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight coaxial connector configuration.
The SMA2I50-1350A/91 has a beryllium copper pin with gold plating (nickel underplated) and a brass body with gold plating (nickel underplated). Similar to almost all of our countless other millimeter wave, microwave and RF components, our SMA jack thru hole mount is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's SMA2I50-1350A/91 thru hole female SMA RF connector has a maximum frequency of 18GHz and a max. As a result, this high-quality through hole mount is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
