Product Details

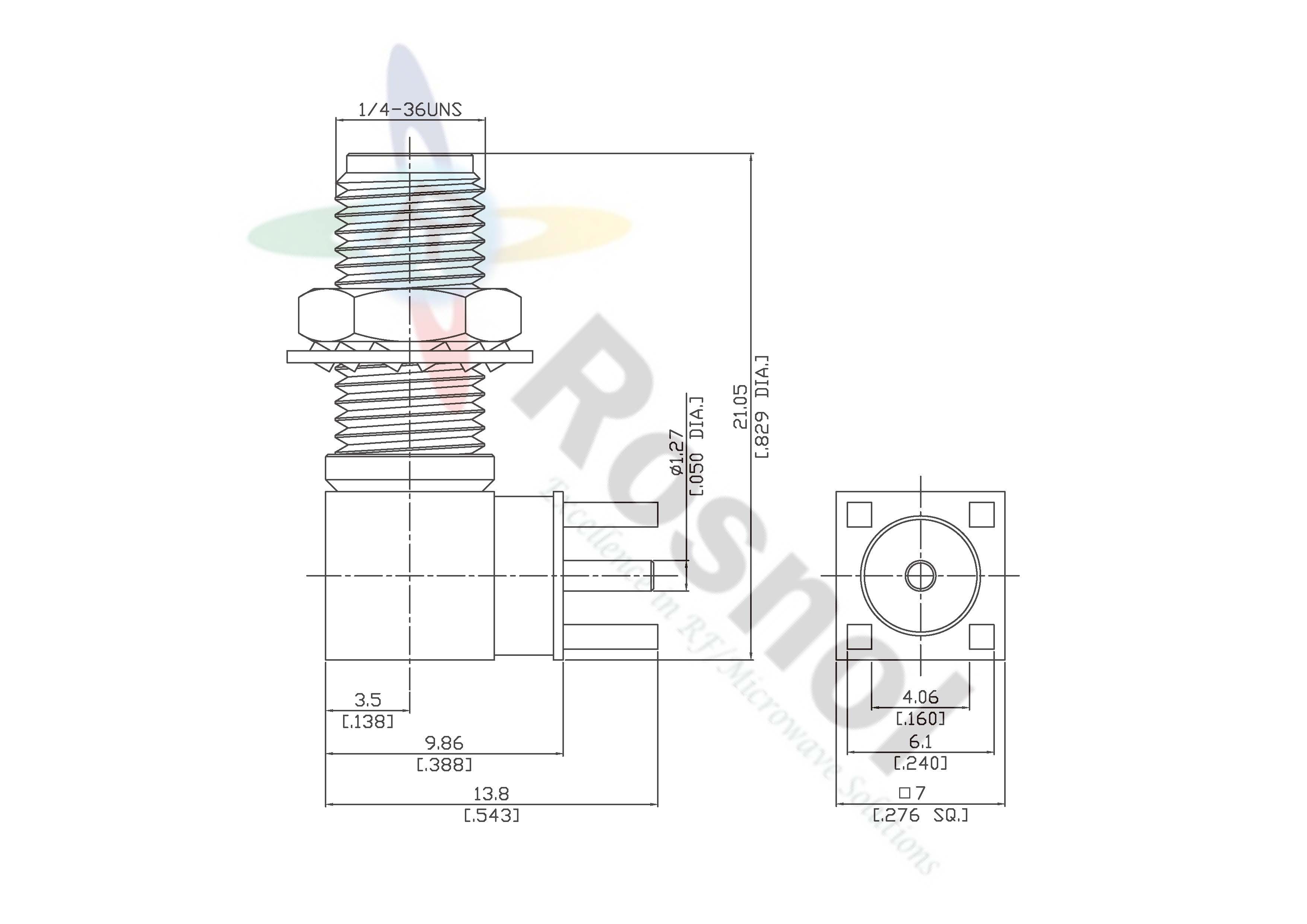

SMA Jack (Female) Right Angle Bulkhead PCB Through Holes Connector
| Order No： | SMA2IA59-2105B/91 |
| Product Name： | PCB Through Holes Mount |
| Series： | SMA |
| Gender： | Jack (Female) |
| Configuration： | Right Angle |
| Backend Type： | Coaxial End |
| Application Field： | Communication |
| Rsonl P/N： | SMA2IA59-2105B/91 |
Product Introduction
The SMA2IA59-2105A/91 is a right angle bulkhead SMA female thru hole pcb connector. This thru hole connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a 90 degree elbow coaxial connector configuration.
The SMA2IA59-2105A/91 has a beryllium copper pin with gold plating (nickel underplated) and a brass body with gold plating (nickel underplated). Similar to almost all of our countless other millimeter wave, microwave and RF components, our R/A SMA jack thru hole mount is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).
Rosnol's SMA2IA59-2105A/91 RA bulkhead thru hole female SMA RF connector has a maximum frequency of 18 GHz and a max. VSWR of ≤ 1.15 + .015F (GHz) or min. Return Loss of 23.1 dB. As a result, this high-quality through hole mount is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.
Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.
